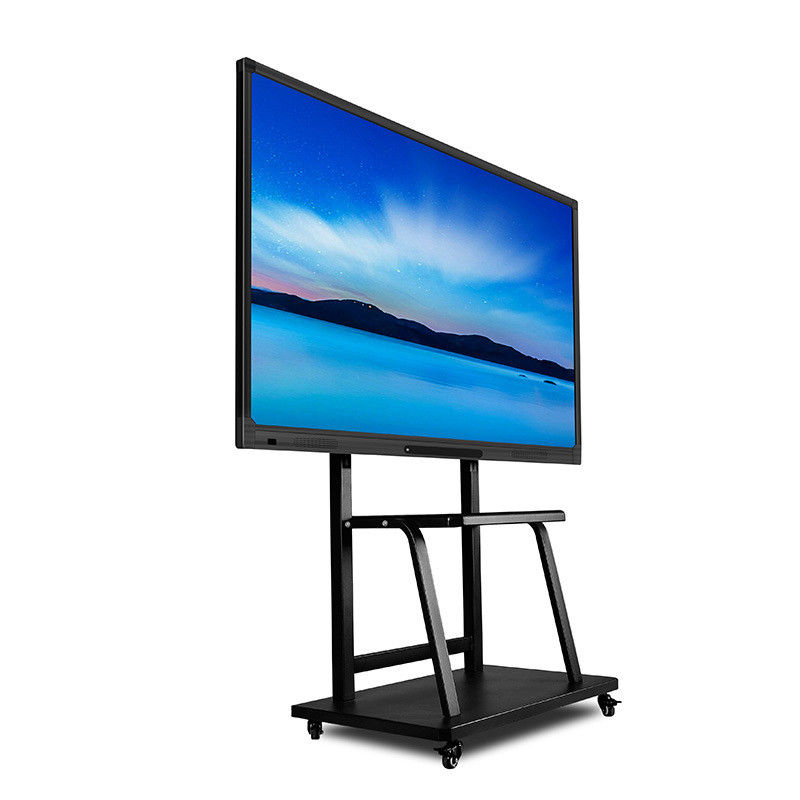

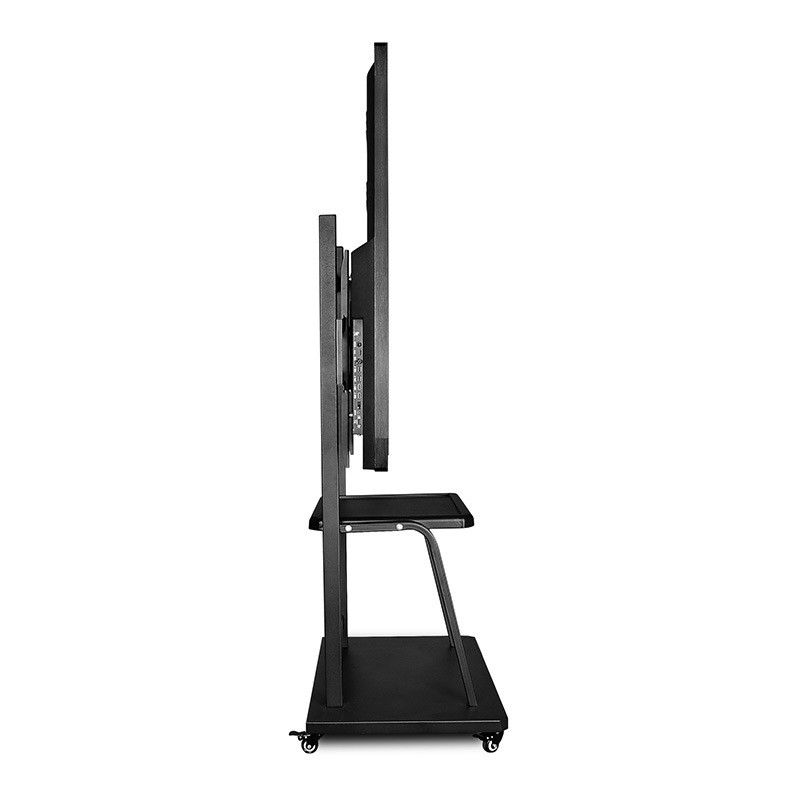

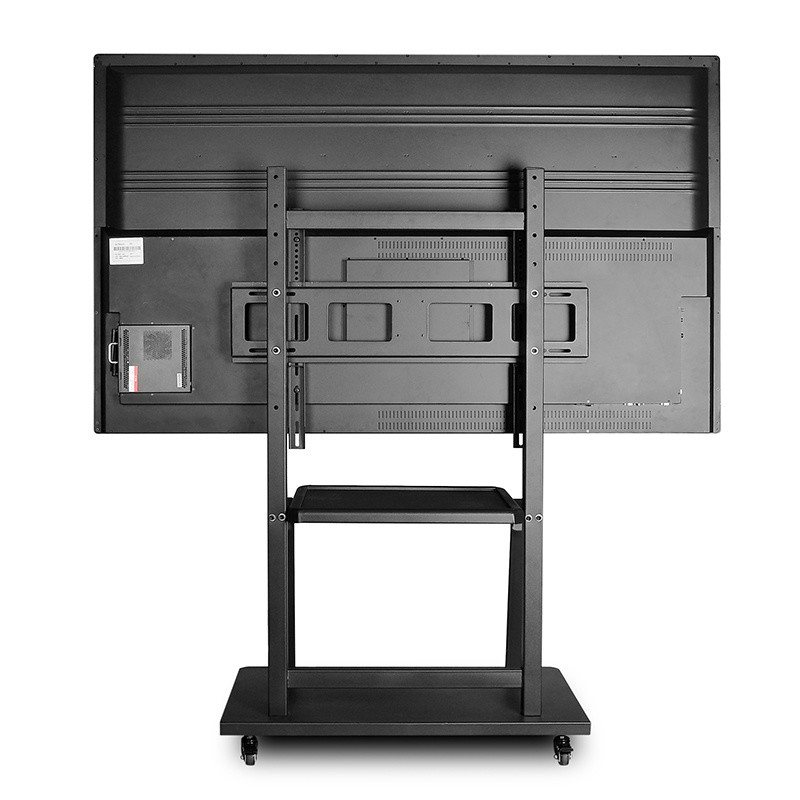

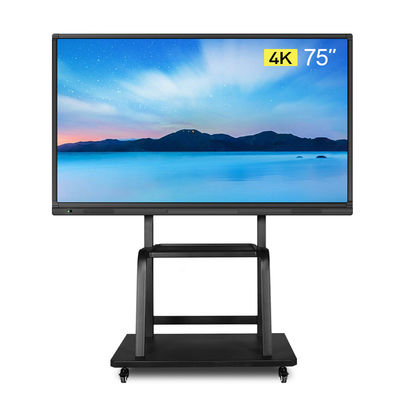

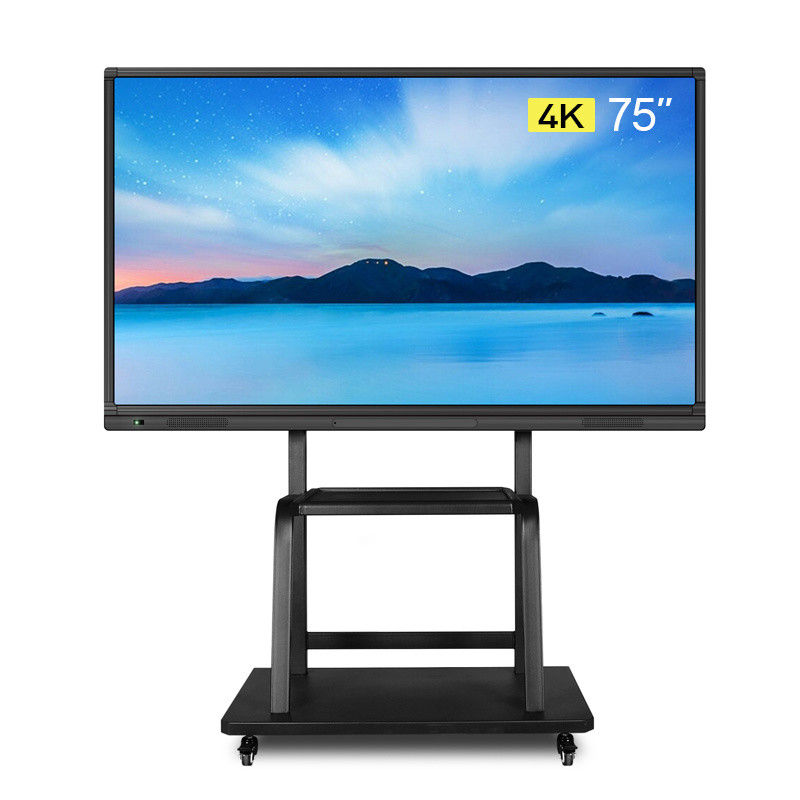

4K Smart Board Interactive Whiteboard Multi Touch 86 Inch 98 Inch Screens For Educational Conference
Digital Smart Board Solution For Teaching & Conference !
Touch Screen Smart Board is an interactive TV, it built-in with LCD/LED and touch screen (and PC for optional). We use the most popular technology infrared touch to achieve interaction between users and the monitor.
All in one touch monitor is also a LCD whiteboard, use the LCD to instead of the projector for image presentation. Connect with built-in or outer PC, it is a large touch PC, fingers to control and operate the PC to present advertisement, conference PPT, classroom courses, play movies and etc…
Smart Board Features
- UHD 3840X2160 (4K)
- Powered by Android 7.0/8.0
- High accuracy IR 20 touches
- Built in OPS PC(Optional)
- Wireless screen sharing
- Ultra-slim body
- Built in 2*15W speakers
- Bundle with Thinkview EduKit Software (Windows)
What's the Interactive Whiteboard Could Bring to Us ?
1. 6 in 1
Say 'goodbye' with your old writing whiteboard, projector, computer, speaker and advertising player...
2. Enriching & Expanding
Complete interfaces, strong compatibility. Building educational resource sharing platform.
3. One Key Remark
Built-in professional whiteboard writing software can be performed on the screen. No delay in writing, reducing, zooming, moving, etc. Can aslo be erased with the back of the hand, smoothly.
4. Multi-Screen Interaction
a. Use the mobile phone to display content on the screen with a single key, and easily interact with each other.
b. Use a wireless screener to pair the PC with the conference tablet. Share the content of the meeting and get it started.
5. Video Conference
Yida smart touch meeting tablet supports polycon, webex and other third-party video hardware and software, real-time remote video conferencing, let you strategize winning a thousand miles away, preemptive negotiation to win orders.
LCD Whiteboard Parameters
|
Specifications
|
|
Panel size
|
32"/42"/50"/55"/60"/65"/70"/75"/86"/98"
|
|
CPU
|
intel i3 (intel i5/i7 option)
|
|
RAM
|
4GB RAM (8GB/16GB option)
|
|
Memory
|
120GB SSD;(240GB SSD/1TB HDD option)
|
|
Windows OS
|
Windows 7/10 without license( license option)
|
|
Android OS option
|
MSD 648 Quad core
|
|
Touch points
|
10/20 points
|
|
Resolution
|
1920*1080 FHD (3840*2160 UHD option)
|
|
Display color
|
16.7M
|
|
Brightness (nits)
|
450cd/㎡
|
|
Contrast
|
5000:1
|
|
Response time
|
8ms
|
|
Life(hrs)
|
>60,000(hrs)
|
|
Front Buttons
|
|
PC power button*1;Volume up*1;Volume down *1;Memu*1;Power on/off*1
|
|
Front Ports
|
|
HDMI*1;Touch out*1;MV in*1;USB2.0*3
|
|
Back Ports (Exact ports info. depends on the model of OPS PC)
|
|
USB2.0 type B*1;USB2.0*2;HDMI*1;VGA*1
|
|
DC(9V-12V)*1;MIC*1;AUDIO*1;LAN*1;USB3.0*2;USB2.0*2;HDMI*1;VGA*1
|
|
Power
|
|
Power input
|
AC100V-220V, 50-60Hz
|
|
Power of speaker
|
8Ω10W*2
|
|
Standby power consumption
|
3W
|
|
Temperature & Shape
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Wall mounted/Floor standing
|
|
Accessories
|
|
Wall bracket/movable floor stand/pen/remote control/WIFI antenna
|
Multi Touch Screen Special Function
1. Common interface front, speaker front, digital audio output, support full-channel touch, touch channel automatic switching, gesture recognition, smart control, remote control integrated computer shortcut keys, smart eye protection, one-key switch.
2. Optional built-in camera, remote participants can see the scene during the network video conference.
3. Optional built-in array microphone function, during network video conference, both on-site and remote can hear the voice of each other's explanation.
4. Detachable infrared frame structure design.
5. Optional high-precision 20-point real touch with an accuracy of 1mm.
Why Choose Us
1. Over 6 Years Experience on LCD Display Screen Manufacturing in China.
2. 1-3 Years High Quality Warranty Provided.
3. 3% Free Spare Parts for Your Orders.
4. Global Quality Standard with CE, ROHS, ETL, UL, FCC Certificated.
5. Overseas Customer in 37 Countries in The Wolrd.
6. Full Capable to Provide the Tailor Work of OEM, ODM.
