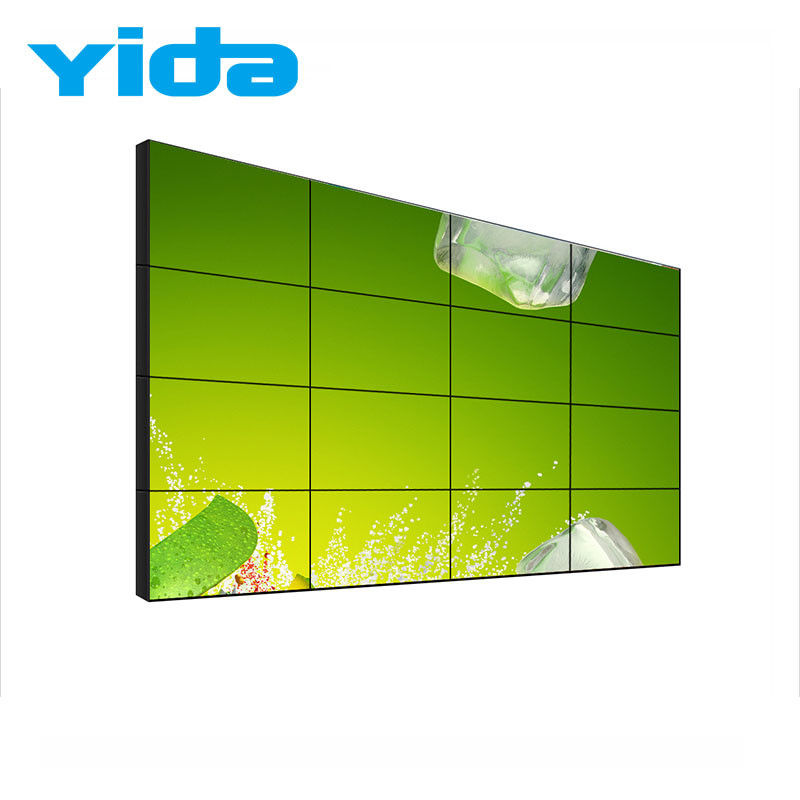

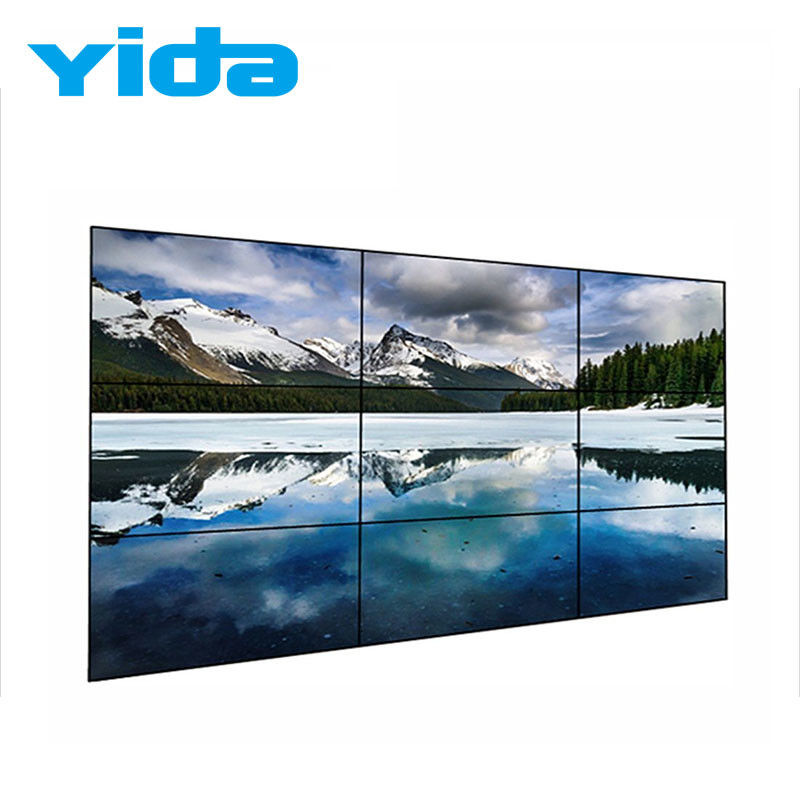

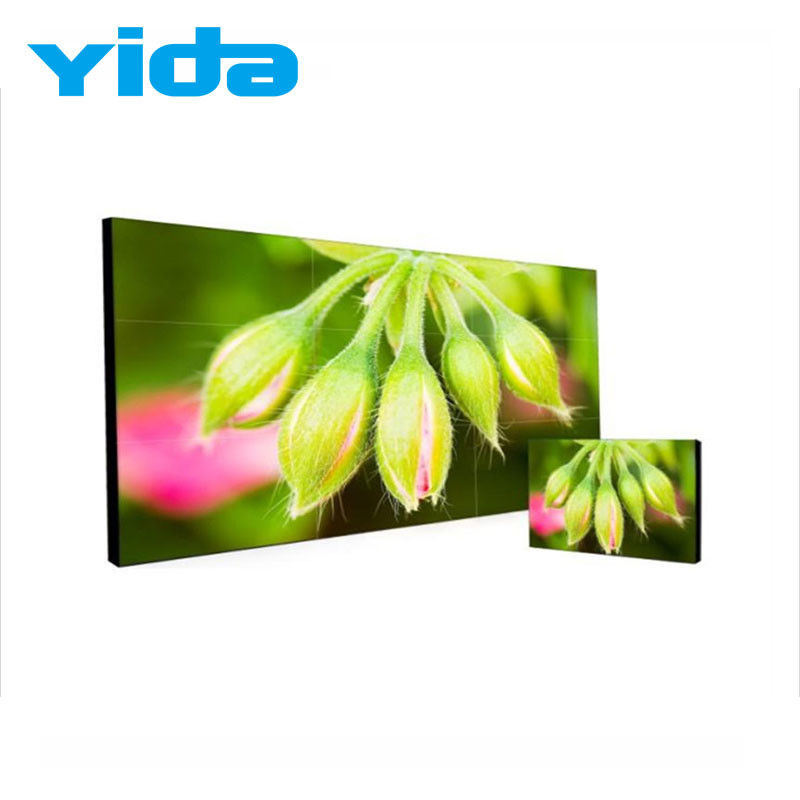

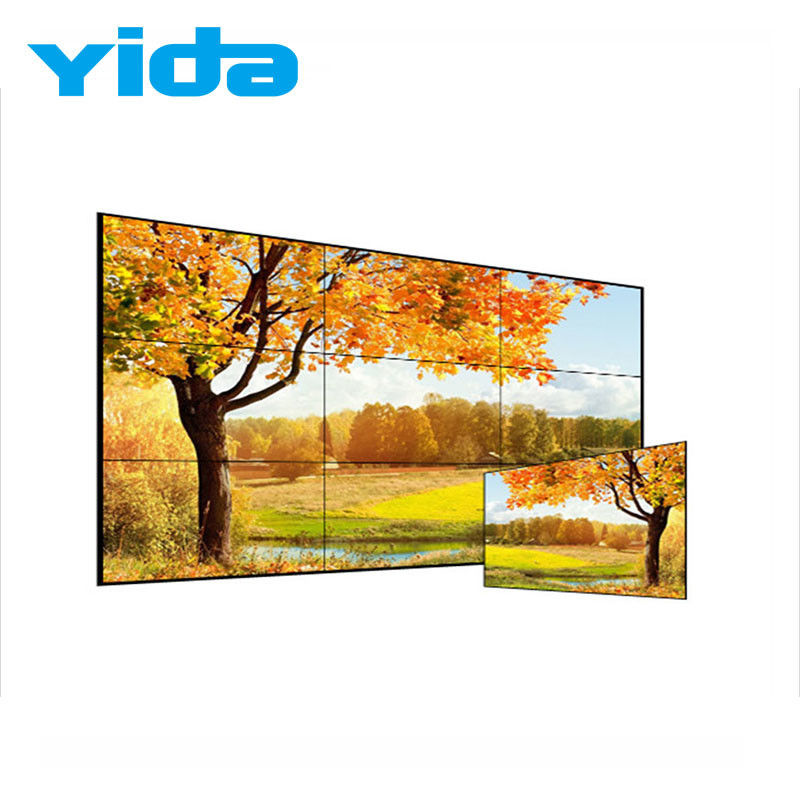

LCD Video Wall 4K Display DID Panel Original LG Board Narrow Bezel 55 Inch Screen (16-LCD Video Wall.pdf)
LCD Video Wall Quick Details
1. Samsung/LG original panel LCD video wall in resolution of 1920*1080.
2. Super narrow bezel of 0.88mm 3.5mm and brightness of 450nits.
3. Random installation support like 2*2, 3*3, 4*4, 4*5 etc.
4. To be installed on the wall or stand on the floor, can be with floor standing cabinet or stand bracket with your own decoration.
5. Front-maintenance bracket also on option.
6. Full screen dispalying and each screen displaying different content support, also random screen combination display full screen also support.
7. 1.5M length HDMI cable, 1.5M length Lan cable, 1.8M length power cable and software to be provided for free.
8. Processor and matrix on option.
9. To be widely used in shopping mall, office, monitoring system etc.
DID Panel Parameters
| Metal Frame |
Material |
Metal |
| Dimensions |
1029.2*583.8*112.5mm |
1023.98*578.57*134.2mm |
1213.5*684.3*122mm |
| Bezel Width(Total) |
7.5mm |
5.5mm |
3.9mm |
| Net weight |
18.5KG |
20KG |
30KG |
| LCD Panel |
Panel brand |
Kontech |
Samsung |
Samsung |
| Screen Diagonal |
46inch |
46inch |
55inch |
| Pixel Pitch(WxH) |
0.53025x 0.53025mm |
0.630x0.630mm |
| Color Temprature |
10000K |
| Display Area(WxH) |
1029.2*583.8mm |
1023.98*578.57mm |
1213.5*684.3mm |
| Aspect Ratio |
16 :9 |
| Contrast(Typical) |
3500:1 |
| Resolution (H x V) |
1920 X 1080 |
| Brightness(Typical) |
700cd/m2 |
500cd/m2 |
500cd/m2 |
| Display Colors |
16.7M(8bit) |
| Response Time(Typical) |
8ms |
8ms |
8ms |
| View Angle |
178°/178° |
178°/178° |
164/164° |
| Operating Life Time |
≥50,000hours |
| Interface |
HDMI |
1x HDMI interface input, support 1080P |
| DVI |
1x DVI digital signal input, support 1080P |
| VGA |
1x VGA analog signal input, support 1080P |
| CVBS IN |
2x video input, support NTSC, PAL & SECAM. |
| USB |
For software updating, HD base map function |
| RS232 |
A serial port ring out controls A, adopt 568B standard |
| RS232 |
A serial port ring out controls computer |
| Feature |
1. Ultra-narrow frame(3.5mm), enjoy seamlessly visual experience.
2. Native resolution up to 1920×1080, viewing angle up to 178°.
3. Built-in 3D noise reduction technology
4. Embedded 3D color separation unit.
5. High reliability, support non-stop work for 24 hours, suitable to use as monitor.
6. Flicker free, Less radiation, Less heat release, no lead, mercury and other harmful substances.
7. Particular block design support multiple art combination. Maximum support(15×15).
8. Low power consumption, standby <3W.
9. Integrated multi-channel video signal source, Support HDMI, DVI, VGA, CVBS etc. and USB video playback. |
| Power Supply |
AC Power Range |
100V-240V |
| Working Temperature |
0~50℃ |
| Working Humidity |
10~90% RH |
| Accessories |
Power Cable |
YES |
| Remote Controller |
YES |
| Wall-mounted bracket |
TBD |
| OSD Language |
YES: Chinese, English, etc. |
| Package |
Hard Carton |
| Warranty |
YES,one year warranty. During this period, any defective happen due to supplier issue, Kontech offer all necessary parts free of charge. |
4K Display Advantages
1. Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
2. High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
3. Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
4. Low power consumption and low heat radiation
5. Long service life lowers the cost of usage and maintenance
6. Innovative and advanced: 42" to 60" Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
7. Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
8. Economic al and practical: High performance and high quality make it cost less.
Digital Signage Descriptions
1. Excellent ultra narrow bezel design with just 3.5 mm bezel width between screens.
2. Built-in 3D noise reduction, making the image clean and outline more vivid.
3. Full HD display 3840x2160 display.
4. LED backlit technology brings you perfect visual effect.
5. 4K input supported.
55Inch Panel Specifications
1. LCD DID Video Wall
High definition large screen. Limited screen, infinite horizon.
2. Ultra Bezel Perfect Vision
The most ultra width of bezel-to-bezel is just 0.3mm, which brings a stunning visual experience.
3. Flexible Installation
Support landscape or portrait display to meet the needs of different occasions.
4. Easy to Remote Control
Smart control software realize real-tine control for video wall via the connection of RS232 interface, with humanized operation system. No need support from database. It's simple, friendly usage and easy maintenance.
5. Split Screen As Your Wish
Advertising Screens Applications
Widely used in all the areas, such as government, airport, hospital, exhibition, hotel, official and commercial center, bank, 4S store, restaurant, retailer shop and other public places.
Our Service
1. All parts from us warranty time is 12 months .
2. We guarantee that each unit is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
3. During the warranty period, we can repair or replace the defective unit for free, after the warranty time, we repair the defective unit and charge part cost.
4. When you receive the package, please open and check it before signing, if it's damaged, ask a "Damage proof" from the delivery company.
5. Any query,please contact us by email or Trade Manager, emails will be responsed within 12 working hours
FAQ
1.Q: Are you a factory or trading company?
-A: We are a OEM&ODM factory.
2.Q: What payment methods your company accept?
-A: We accept most of payment methods,but mainly accept T/T, L/C, Western Union and Paypal.
3.Q: How long is the warranty time for your products?
-A: Our officially promised warranty time is one whole year after delivery at best.
4.Q: I haven't done business with you guys before,how can I trust your company?
-A: And we've got quite a lot authority certificates,for example,CE,RoHS, FCC, ISO9001,etc.I hope those above will be persuasive enough.Our Trade Assurance Limit is US $500,000,and it is still going up.
5.Q: What's the shipment terms and delivery time of your company?
-A: Well,the depends on the quantity of your order.As you know ,we need time to manufacture the machines.But mostly, the shipment time is 3-8 working days after delivery.For delivery way,for Sample&Bulk order<100KG,we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order>100KG,as for detailed cost, it depends on your final order.
6.Q: Do you give me any discount?
-A: I'm surely try my best to help you get those by the best price and good service at the same time.
