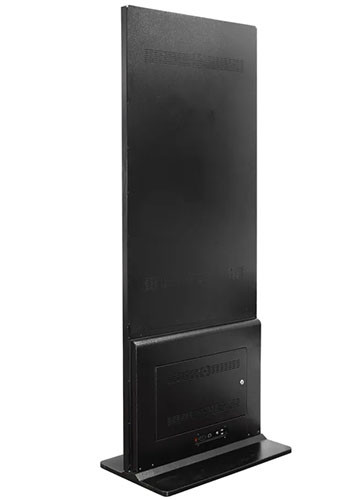

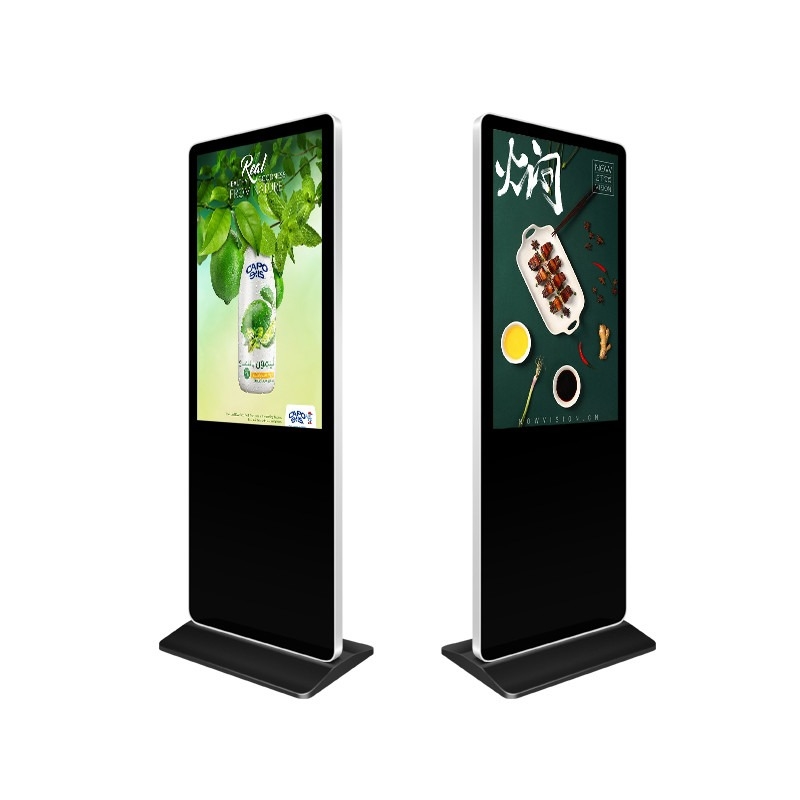

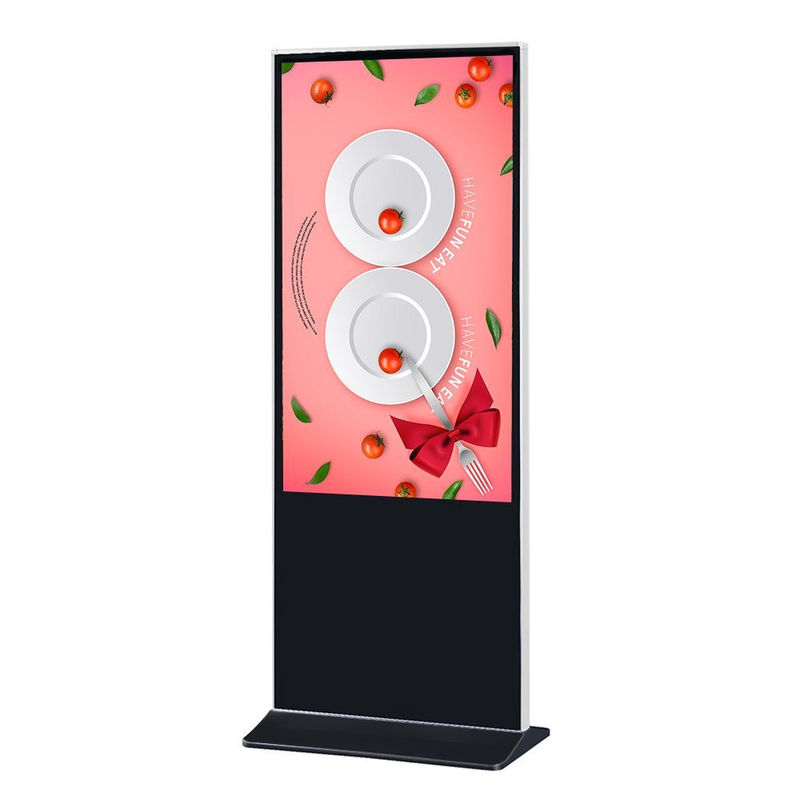

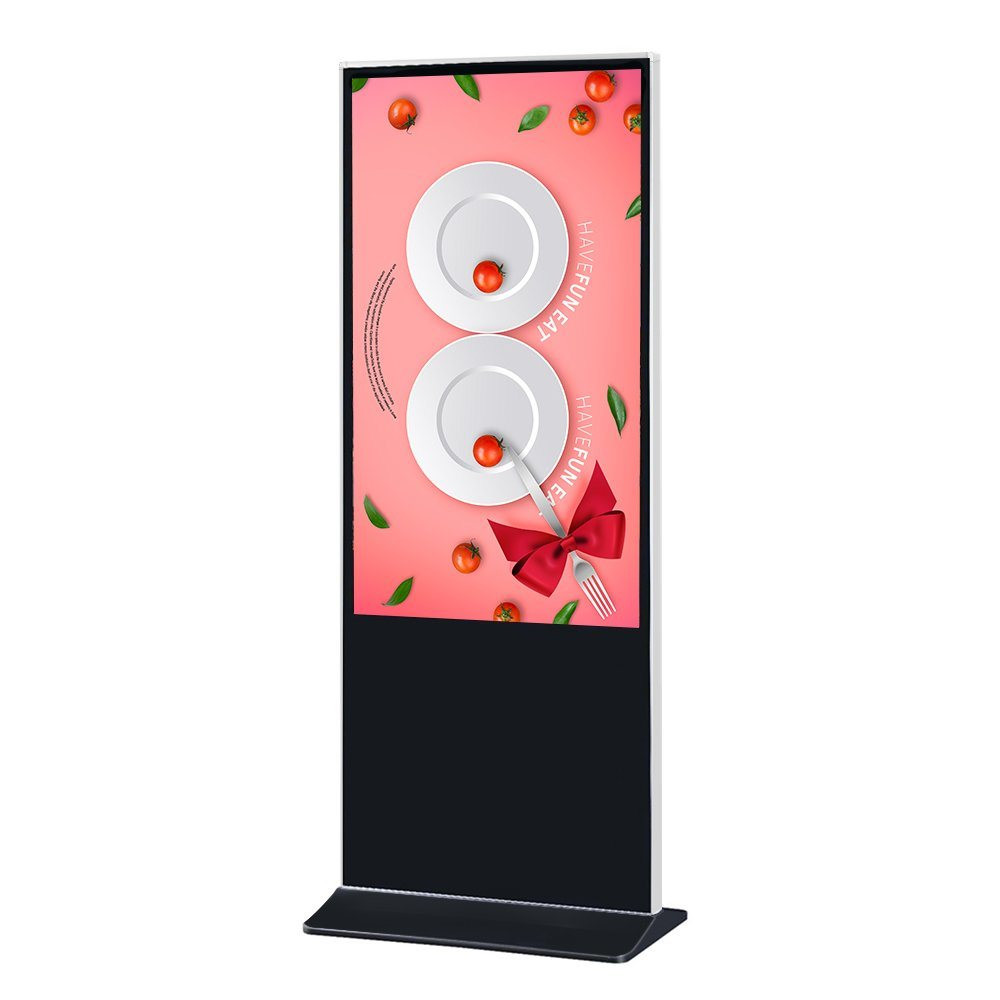

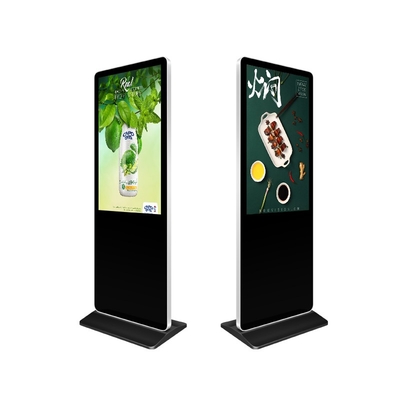

Kiosk Touch Screen LCD Digital Signage Free Standing Info Kiosk Display
Widely used in airports, stations, the catering industry, the entertainment industry, medical institutions, golf courses, supermarkets, exhibitions, stadiums and gymnasiums and etc. In the kiosk touch screen application, the interactive is becoming more and more important, so it is important that the floor-standing kiosk touch screen can built-in touch function.
1) Design: Slim, Sleek & Stylized Freestanding Design;
2) Process: 3mm tempered glass covered in front to protect LCD panel, obtain an IP65 rating on the front side of the unit;
3) Solution: Windows/Linux based, CPUs can be J1900, I3, I5, I7, support expansion peripherals: ID card reader, one / two-dimensional code scanner, printer, IC card reader, infrared sensor, etc;

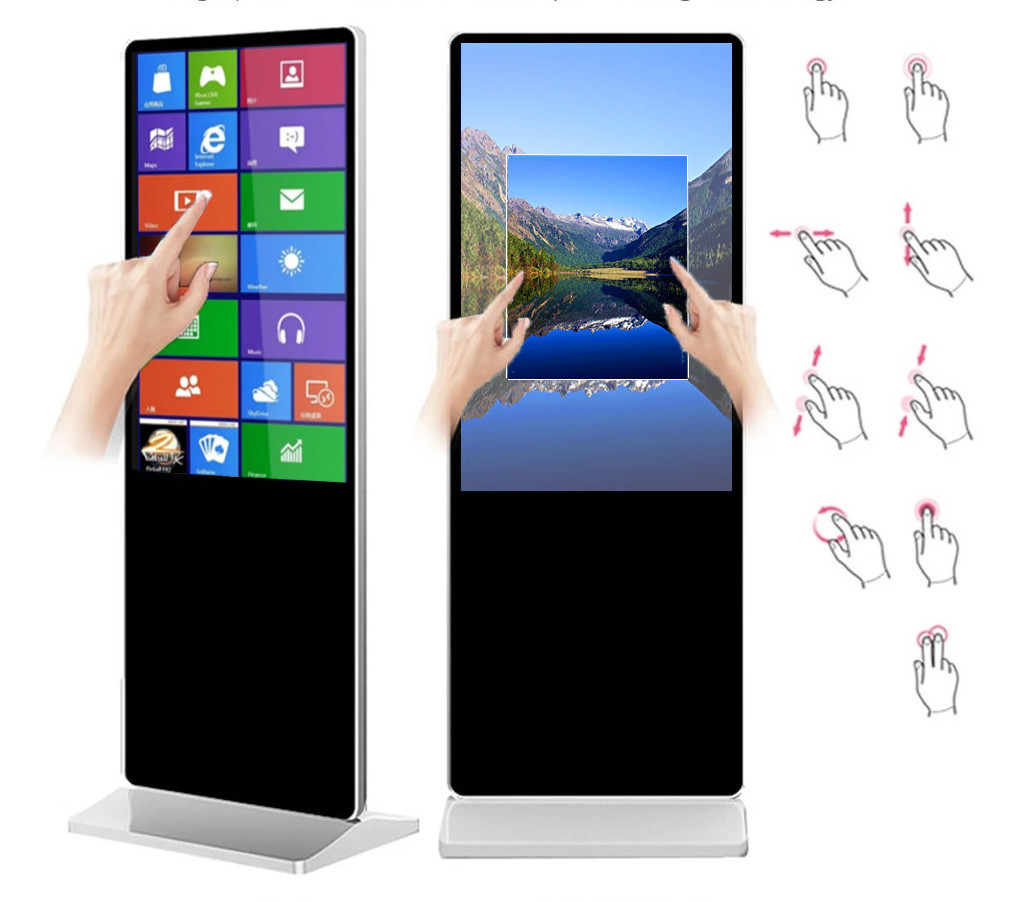

4) Touch technology: 10 points smooth projected capacitive kiosk touch screen.
Indoor LCD Kiosk Parameters
| Kiosk Touch Screen Parameter |
| Active display size (diagonal) |
65" |
75" |
85" |
| Aspect Ratio |
16:09 |
16:09 |
16:09 |
| Product dimension (mm) |
1479.9*911.1*109.4mm |
1699.2*1038.2*104mm |
1940.2*1176.9*106.2mm |
| Slime frame |
13 mm |
13 mm |
13 mm |
| Dynamic Contrast Ratio |
4000:01:00 |
4000:01:00 |
4000:01:00 |
| Resolution |
3840*2160 (4K) |
3840*2160 (4K) |
3840*2160 (4K) |
| Colors |
8 bit / 1.07 billion colors |
8 bit / 1.07 billion colors |
8 bit / 1.07 billion colors |
| Brightness |
350cd/m2 |
350cd/m2 |
350cd/m2 |
| Response time |
8 ms |
8 ms |
8 ms |
| View Angle |
178°, 178° |
178°, 178° |
178°, 178° |
| Dot pitch (mm) |
0.124 mm x 0.372 mm |
0.4298 mm x 0.4298 mm |
0.4875 mm x 0.4875 mm |
| Panel life expectance |
≥50000 hrs |
≥50000 hrs |
≥50000 hrs |
| LCD quality |
Grade A |
Grade A |
Grade A |
| Speakers |
15W x 2 |
15W x 2 |
15W x 2 |
| OPS Slot |
Yes (42mm,80Pin) |
Yes (42mm,80Pin) |
Yes (42mm,80Pin) |
| Power consumption |
Maximun< 220W |
Maximun<300W |
Maximun< 350W |
| Power voltage |
100V - 240VAC, 50/60Hz 15W x 2 |
100V - 240VAC, 50/60Hz 15W x 2 |
100V - 240VAC, 50/60Hz 15W x 2 |
| Work environment |
TEMP: 0ºC ~ 40ºC / Humidity: 20% ~ 80% |
TEMP: 0ºC ~ 40ºC / Humidity: 20% ~ 80% |
TEMP: 0ºC ~ 40ºC / Humidity: 20% ~ 80% |
| Storage environment |
TEMP: -10ºC ~ 60ºC / Humidity:10% ~ 60% |
TEMP: -10ºC ~ 60ºC / Humidity:10% ~ 60% |
TEMP: -10ºC ~ 60ºC / Humidity:10% ~ 60% |
| Maximum continued working time |
18 hours*7 days |
18 hours*7 days |
18 hours*7 days |
| |
|
|
|
| Android System (Default) |
| System configuration |
Android 8.0, RAM 4G + 32GB, chipboard: Hi3751ARBCV8110D0N , |
| Interface Inputs / Outputs |
HDMI in*2, HDMI out *1, USB2.0*2,SD-TF*1, AV input*1 , YPbPr*1, RJ45*2, SPDIF output*1, VGA input*1, Touch USB*3, Audio input*1, DP IN*1, USB Extend *2, RS232*1, SD*1, AV output*1, earphone *1, MIC*1, wifi *4 |
| Model |
DSY-65DV18 |
DSY-75DV18 |
DSY-85DV18 |
| Kiosk Touch Screen Parameter |
| Glass surface |
4 mm Tempered glass |
| Technology |
Infrared touch (IR touch) |
| HID support |
Yes |
| Touch supported |
10 points touch /max 20 points touch |
| Writing tools |
finger or any opaque object |
| Positioning accuracy |
2 mm |
| Response Time |
≤ 5ms |
| Connection Interface |
USB |
| Detachable IR frame |
Yes |
| Software |
Yes |
| Touch Life Expectancy |
≥ 60,000,000 times |
Digital Media Player Advantages
High resolution - wonderful advertisements visual enjoyment
1. Android App, Installation-Free
Give us all the applications of your AD machine
2. Toughened Glass Surface+Prevent Scratching+Heat-resistant+Striking Resistant
- Water-proof.
- Explosion-proof.
- Crush resistance.
- Protect against unexpected shocks.
3. 178° Ultra Wide Viewing Angle
New LG energy-saving kiosk touch screen, 1080P high-purity color
4. U Disk Play
Insert USB flash drive copy, support multiple main format video music, image file
5. 3D Natural Light Video Processing Technology
1080P high definition display, restore the true picture
Shenzhen Yida Technology Co., Ltd located in Shenzhen, Guangdong covering 3,000 square meters which is one of the leading manufacturers specializing in LCD Video walls, Indoor Digital Signage, and Touch Kiosk Touch Screens with about 6 years of experience! Our products have passed CE/ RoHS/FCC/ CCC certificates. Customers are growing all over the world such as in North America, South America, South Africa, North Africa, Southeast Asia, Euro, etc.
We aim to provide every customer with reliable quality and excellent after-sale service. Win-win and long-term cooperation is Yida's eternal goal!
